Compactor Machine for Textile Factory
Compactor Machine

An Overview of Compactor Machine for Textile Factory

Compactor Machine:

The compactor machine is used in Textile Factory is a compaction machine used in textile finishing of apparel fabric. The compactor is a textile machinery which is used for knitted fabric like jersey, pique, interlock, plush, rib etc. as well as cotton blended fabric in rope form. The compactor is used for controlling shrinkage of fabric, GSM control and make compaction the fabric in length wise direction to provide over feed to the fabric while processing in presence of steam and able to control the shrinkage. The text compactor is used as finishing machine after dyeing. Open Width Compactor is used after Stenter Machine and Tubuler Compactor Machie is used after Industrial Dryer Machine.

Application of Compactor:

Text compactor is appropriate for compaction fabric for the felt boarding and pre-shrinking process of pure cotton, blended cotton and polyester tubular fabrics, the shrinkage of fabrics can be less than 4%. It also used for  textile printing and general textile manufacturing in Textile company.

Types of Text Compactor:

The text compactor are given below-

  1. Open Width Compactor
  2. Tubular Compactor

Function of Compactor:

  • Compactor hire increase smoothness for fabric during the process of textile finishing
  • GSM control during the process of textile finishing
  • Shrinkage  control during the process of textile finishing
  • Twisting control under the process of textile finishing
  • Increased compaction and shrinking of fabric
  • Heat setting is done by compaction using this machine.

Specification of Compactor:

Specifications NameSpecifications Value
Product CategoryFinishing
Machine CategoryCompactor
Product NameCompactor Machine
Product ModelAccording to textile company
Product ClassNew
OriginChina/India/Others
Brand/ ManufacturerName of Manufacturer of textile company
Agent in BangladeshNo/Yes
Power380v, 30 Kw
TemperatureNormal
CertificationSGS/Others
Production CapacityNA
Working width1500mm
Mechanical speed3~35m/min
MotorizationInverter
The temperature of cylinder 0~200°C
Pressure of compressed air 0.3~0.6MPa
Pressure of steam0.4~0.6MPa
Adjustable width of cloth400~1500mm
Motor power8.02kw
Dimension7558×2850×2350mm
DescriptionUsed in Textile Factory / textile company for textile manufacturing

Feature of Text Compactor:

Features of a compactor m/c for textile factory is given here shortly –

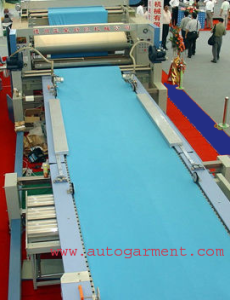

text compactor
Compactor
  • Steam box  of compactor is made by stainless steel.
  • Belt speeds synchronized by load cell for accurate compaction
  • Automated compaction procedure with best reproducibility.
  • Excellent outstanding shrinkage for textile finishing
  • No increase in outstanding shrinkage
  • Improved Compaction Power for developed multi layer felt belts of text compactor
