Barcode Label Printer and Barcode Generator
Label Printer

What is Barcode Label Printer and Barcode Generator?

Barcode Label Printer

A barcode label printer is a computer type printer to make barcode which prints on self labels of garments material and tags. Label printers are separate from normal printers because they need to have special feed mechanisms to handle rolled stock. Common connectivity for barcode label printer of different barcode types include  USB port, Parallel port , Network Interface , RS232.

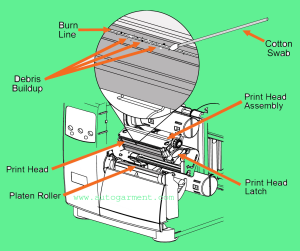

Diagram of a Bar Code Printer:

Diagram of bar code printer is given below-

Industrial Barcode Printer
Barcode Printer Parts

Specifications of Zebra Barcode Printer :

[label type=”label” title=”Field”]  [label type=”label” title=”Value”]
Product Category Printer
Machine Category Label Printer
Product Name Barcode Generator
Product Model Zebra barcode printer
Product Class New
Origin China/Others
Brand/Manufacturer Zebra barcode printer company
Agent of Bangladesh Yes
Power 100-240 VAC, 47-63 Hz
Certification SGS
Flash memory 8 MB, factory installed 64 MB
Port RS-232, Parallel, USB 2.0
Sensors Transmissive, Reflective
NIC/LAN 10Base-T
Processor 133 MHz
SDRAM 16 MB
Calibration Auto
OS Microsoft Windows 7
Media type Continuous
Minimum label length Rewind mode: 0.25 in
Minimum label length Peel mode: 0.5 in. (13 mm)
Minimum label length Tear-off mode: 0.7 in. (18 mm)
Minimum label length Cutter mode: 1.5 in. (38 mm)
Maximum roll size 8.0 in.
Interlabel gap 2 – 4 mm
Sensing notch 0.25 in. W (6 mm) / 0.12 in. L (3 mm)
Sensing hole 0.125 in. 3 mm diameter
Black mark length 0.12 in. – 0.43 in. (3 – 11 mm)
Black mark width 0.43 in. (> 11 mm)
Black mark location within 0.040 in.
Black mark density 1.0 Optical Density Units
Width (label & liner) 0.79 in. (20 mm) to 4.5 in. (114 mm)
Lengths of  Ribon 1476′ (450 m) or 984′ (300 m)
Maximum ribbon roll size 3.2 in. (81.3 mm) outside diameter
Ribbon width 0.79 in. (20 mm) to 4.33 in. (110 mm)
300 dpi resolution 12 dots/ mm
203 dpi resolution 8 dots/mm
300 dpi  Maximum print width 4.09 in. (104 mm)
Description zebra technologies manufacture high quality of barcode printing devices


Example of Barcodes:



Example of Barcodes
Example of Barcodes

COLOR CODE # 251

026027022510401600

026027022510501607

026027022510601406

026027022510701403

026027022510801301

026027022511001304

026027022511201100

026027022511401104



SHORT CARTON

026027022510401402

026027022510501386

026027022510600607

026027022510700369

026027022510800588

026027022511200608

026027022511400862





COLOR CODE # 401

026027024010401609

026027024010501606

026027024010601405

026027024010701402

026027024010801300

026027024011001303

026027024011201109

026027024011401103



SHORT CARTON

026027024010400206

026027024010500661

026027024010700306

026027024010800341

026027024011000566

026027024011201048

026027024011400588

Feature of Industrial Barcode Printer  :

Feature of industrial barcode printer is given below-

  • Industrial barcode printer support dual Motor gear driven design
  • It support color coded operator cues
  • Barcode generator support multi language control panel
  • Labels peel off and tear off automatically
  • Bar code works as thermal transfer or direct thermal technology
  • Die cast aluminum base, frame and print head mechanism
  • Large clear window with metal media cover
  • Parallel, serial, Ethernet and USB optional Interface
  • Free bundled labeling software
  • Element Energy Equalizer for superior print quality
  • Barcode printer generate auto calibration technique
  • Bar code printer is for garment label printing have real time clock
  • A lot of barcode types mc found in market
  • Industrial barcode printer have auto ranging  power supply
