Printing Conveyor Dryer. Parts of Conveying Conveyor Belt

Conveyor Dryer

Printing conveyor dryer is a machine which is used after printing techniques to dry the fabric or garments quickly  and  to add the paint, varnish or ink smoothly into the  material is called conveyor dryer. It widely used in textile printing industries to dryeing t-shir, garment, clothes printed by different  printing ink except uv ink.[1]

Specifications of Printing Conveyor Dryer for Conveying Systems:

[label type=”label” title=”Specifications Name“] [label type=”label” title=”Specifications Value“]
Product Category Dryer
Machine Category Printing Dryer
Product Name Printing Conveyor Dryer
Product Model Supplier Based
Product Class New
Origin China/Others
Brand/Manufacturer Supplier Based
Agent in Bangladesh No
Power 380V*4.8KW
Temperature 0-300 Centigrade
Certification SGS/Others
Production Capacity 60 Set/Sets per Month
Output length 500mm
Input length 700mm
Heating area length 1250mm
Belt width 700mm
Max. Temputer 250 degree Celsius
Weight 300kg
Dimension 2450*1200*1000mm
Description Motor can be set to any speed and provides a smooth and even motion. screen printing at home

Conveyor Dryer  for Diy Screen Printing :

The list of feature of printing conveyor dryer for conveying systems is given below-

  • Drying box is equipped with inlet and outlet point and it  has shelter door which can be adjusted up and down shield heating sources leak, as a result it can protect working environment of dryer that save energy and usefull for diy screen printing.
  • Total 8 infrared lamps working in the conveyor dryer during conveying  and somebody may control infrared lamps according to their requirements in textile printing ,
  • Conveyor belt height which is used for textile printing can be adjustment according types of products’s dimension.
  • Very high powered multiple infrared curing elements to enhanced printing techniques
  • Require  thick stainless plate conveyor
  • UV tube with reflector is used for diy screen printing
  • Machine have conveyor belt for conveying garments with quiet varying speed motor
  • Teflon coated fiber glass belt dryer of textile printing stand can be separeate freely and easy to move.
  • The air volume can adjust wind supply for textile printing in printing industry
  • It has different types of printing techniques. E.g. diy screen printing

Conveyor Components:

Some conveyor components are listed below-

  • Drying box
  • UV tube
  • Infrared lamps
  • Inlet point
  • Outlet point
  • Shelter door

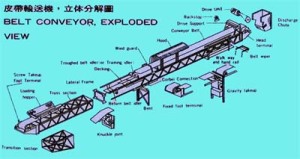

Parts of Conveyor Belt:

Some parts of conveyor belt are listed below-

conveyor belt
Parts of Conveyor Belt
  • Drive Unit
  • Drive Support
  • Conveyor belt
  • Hood
  • Wind guard
  • Training idler
  • Lateral Frame
  • Truss section
  • Screw
  • Foot Terminal
  • Loading hopper
  • Transition section
  • Return belt
  • Bent
  • Fixed foot terminal
  • Walk way and had rail
  • Belt wear
  • Head terminal
  • Discharte chute
 [1] Sujan Shakhawat, B.Sc. in Textile Engineering, City University
