What is Embroidery Group or Combination Embroidery?

1. Embroidery Group

The embroidery group or combination embroidery is the new embroidery function developed on the basis of the abc embroidery series platform which features for its stable performance.   The combination sewing and embroidery machine function includes three functions, such as extension of embroidery range, increase of color number at embroidery and increase of both embroidery rang and color number. We will provide the detailed operation procedure and method on setting each function base on embroidery group.

 2. How to do Machine Embroidery Group:

It described below how to do machine embroidery group shortly –

2.1. Embroidery Garden and Grouping Method:

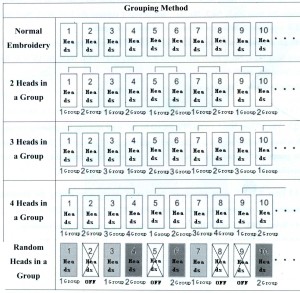

The embroidery garden and combination embroidery can divide 2,3,4, or random heads  in a group. You can take reference from the following figure.

embroidery garden embroidery group
Embroidery Group

2.1.1. Embroidery Garden and Meaning of Grouping Method:

Embroidery garden with the meaning of grouping method is given below –

2 Head in a Group: Make 2 neighboring heads in one group, the head with odd number are the 1st group, the head with even number are the 2nd group. It is suitable to the design that needs two heads to work together.

3 Head in a Group: Make 3 neighboring heads in one in one group that means the Group 1 contains the head No. 1, No.4, No.7….,  Group 2 contains the head No.2, No.5, No.8….., and Group 3 contains the head No.3, No.6, No.9. It is suitable to the design that needs 3 heads to work together.

4 Head in a Group: Make 4 neighboring heads in one in one group that means the Group 1 contains the head No. 1, No.5, No.9….,  Group 2 contains the head No.2, No.6, No.10….., and Group 3 contains the head No.3, No.7, No.11….., and group 4 contains the head No.4, No.8, No.12 . It is suitable to the design that needs 4 heads to work together.

Random Heads in a Group: Make random head in a group. For an example, Group 1 contains head No.1, No.3, No.7, and Group 2 contains head No. 4, No.6, No.10. It is for embroidering for special deign.

3. Combination Sewing and Embroidery Machine :

The combination sewing and embroidery machine function includes three functions,

  1. Extension of embroidery range of embroiderygarden
  2. Increase of color number at embroidery
  3. Increase of both embroidery rang and color number

3.1. Introduction of Extension of Embroidery Range:

In order to achieve the purpose for extending the embroidery range, user can use several heads to embroider one design together to make embroiderygarden , whose range is so big that it is unable to be done by one head.

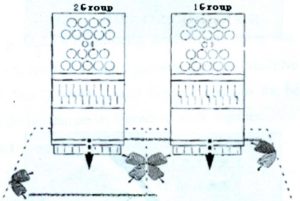

For example, use “2 Head in a Group” method to extend the embroidery range. Use two heads to do one design together, whose range shall be within the coverage of two heads.

how to do machine embroidery
Embroidery Rang

3.2. Introduction of Embroidery Color Combinations:

In order to achieve the purpose for of Increasing of embroidery color combinations , user can use several heads to embroider one design together, whose range is much that it is unable to be done by one head.

For example, use “2 Head in a Group”  method to increase of embroidery color number. Use two heads to do one design that has 18 colors and each head has 9 colors.

3.3. Increase of both Embroidery Rang and Embroidery Color Combinations :

In order to achieve the purpose for of both embroidery rang and embroidery color combinations  number, user can use several heads to embroider one design together, which cover such as large range and has so much color that is unable to be done by a single head. The embroidery thread colors  are also installed in this system.

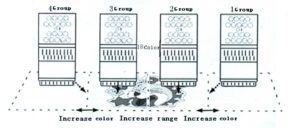

For example, use “4 Head in a Group”  method to increase both embroidery color combinations  and the embroidery range:  Use four heads to do one design that has 18 colors and  is within the range of two neighboring heads.  Each head has 9 colors. It is equipped with embroidery floss colors.

embroidery thread colors
Both Color and Range

DAHAO Embroidery Garden  system manufacturing embroidery machine including this Embroidery Group feature.
