Types of Needles. Mechanism of Butterfly Needle

Types of Needles. Mechanism of Butterfly Needle

What is Needles:

There are different types of needles are developed day to day. In the early history of the human instinct of self-defense based, and made Clothes. Production technology was also very simple, is to use an awl made of animal bones do. Stitched weapon, these bones may only be used to pre-piercing cone to Lipi Sheng or Through the vines.  The use of animal bones, horn, ivory manufacturing. Made by bone, horn, ivory. 17500 BC in the first hole of the needle has come out root. Manufacturing 3500 BC copper is used in the needle. 1000 BC iron began to be applied to enhance hardness than in the past many. You can visit more about some types of needles replacement system

Types of Needles:

  • Knitting types of needles (circular knitting machine needles, sewing    machine needles cross)
  • Medical types of needles (surgery, minimally invasive surgical needles, acupuncture, medical america)
  • Instrument with a needle (flute, saxophone with a needle )
  • Electronic semiconductor with a needle (air filters, discharge needle, probe)
  • Nonwoven (needles)
  • Finishing with a needle
  • Hand stitches
  • Needle arts (ceramics, quilting)
  • Bur
  • Computerized embroidery needles
  • Schiffli lace with a embroidery needles
  • Costume with a needle (underwear, jeans, knitted …)
  • Leather (footwear) with a needle
  • Bindings with a needle
  • AD 1851 FRED. SCHMETZ GMBH (Blue Lion) was founded in Germany? Country Anchen
types of needles
Types of needles

METAL CONTAMINATION

  1. The in charge or nomination person should hold all the spares in a secured location, and only he shall be permitted to allocate to the operators.
  2. Mechanics must ensure that no needles are left on the machines after servicing
  3. The operator must not hold any spare needles.
  4. The issues of needles against broken needle should be one for one basis.
  5. Old and worn needles should be disposed off securely in a sealed container.
  6. If a needle breaks, all parts must be found or case defined (in case part of the fragments cannot be found) before the work is allowed to continue. The in charge must ensure that proper searches have been carried out if all the parts of the needle have not been located.

Major industrial burs manufacturers with Butterfly Needle:

  • SCHMETZ (Blue Lion): engaged in production in Germany and India.
  • GROZ-Beckert (Baker): engaged in the production or testing in Germany or India.
  • ORGAN (organ): engaged in production in Japan and Vietnam.
  • ORANGE (orange card): South Korea engaged in production.
  • TNC (Triumph Needle): engaged in production in Taiwan
  • Dotec (Dott needle): Production in Zhangzhou, Fujian
  • World every year on average produce about 600,000,0000 support industrial burs

Production Process of All Types of Needles:

Production Process of All Types of Needles
Production Process

Triumph Needle Company (TNC):

  • Tricyclic needles in 1978 in collaboration with the Japanese company Green wooden needles
  • 1988 Triumph Needle Corp. (TRIUMPH NEEDLE CORP.)
  • And West Germany Aires card (Lammertz needle GmbH.) Technical cooperation
  • Nearly 300 employees at the company’s services
  • Product Category: Industrial vehicles needles, knitting needles
  • Yield: about 250 branches
  • Major markets: China, Thailand, the Middle East, South America, Vietnam, more than 47 countries
  • Address: Taipei, Taiwan

Second, the material analyzed :/ Material report:

The company uses the best steel in Germany, with the most well-known of the Blue Lion needle (SCHMETZ NEEDLE) is the same supplier and is the same material, the German number is N100, similar to the Japanese steel SK3, is a high-carbon steel, but the difference is to add a small amount of N100 Cr (chromium), V (V) and Mn (manganese) alloys after heat treatment makes for a better performance in terms of hardness and toughness. N100 and the P (phosphorus), the impurity content of S (sulfur) can be said to approach zero, the purity is far better than the other countries in the current steel. It is the ball of the organization doing the best companies all over the world

Neede Illustration :

triumph needle ilustration
Needle ilustration

DBM: Blade diameter

HKFR:Length of scarf

DBO:Width of eye side

LAO:Butt to eye length

DDC:Tapered part diameter

LC:Shank to shoulder length

DK:Shank diameter

LDC:Shank to tapered part length

HT:Depth of scarf

LG:Total length

LK:Length of shank

OB:Eye width

OL:Length of eye

RBL:Width of groove

RGL:Depth of blade diameter without depth of groove

STEG: Depth of blade diameter without both sides depth of groove

Needlepoint Kits  – Sharp Point:

Sharp point means:- Tip of the Needle looks like  “V” shape.

Needlepoint Kits - Sharp Point
Sharp Point

Needlepoint Kits – BALL POINT:

Ball point means:- Tip of the Needle looks like  “U” shape.

Cause of Needle Cut:

  • Needle Size.
  • Size & Shape Of Needle Ball.
  • Needle Blade System & Shape.

How Can We Remove Needle Cut ?

  • Smaller needle size
  • Slim kn
  • KN+SPI
  • KK+KN
  • SPI POINT

Skipped Stitches:

  • Larger Needle Size
  • NY Needle
  • USP Shape Needle
  • USP Needle

Seam Puckering

  • Smaller needle size
  • Slim kn
  • Spi point
  • KN+SPI
  • KK+KN

Seam Puckering Construction Rules:

  • Must be use correct needle for the material/ product, e.g. rounded top of needle on knits
  • Must not use needles with blunt point, this to avoid fabric damage
  • Must stitch density should generally be 4 – 5 stitches/ cm, 10 – 12.5 stitches/ inch but must
  • be suitable for the specific product and thread
  • Must all exposed seams must be over-locked or covered with binding/ tape, if no other instructions have been given
  • Must have elasticity on seams matching to the product’s quality
  • Must use suitable thread tension/ elasticity matching to the material/ product
  • Must have an even and equal length on stitches
  • Seam puckering must use 4 thread over lock
  • Must have an even seam allowance, minimum 7 mm wide, after over locking. Width on seam
  • Seam puckering must allowance must be suitable for the actual material, e.g. some heavy knits need wider
  • Must seam allowance to keep stable
  • Must have no puckering/ stretched out seams, if no other instructions has been given
  • Must not have joint stitches at visible areas
  • Seam puckering must have tape/ reinforcement at shoulder seams
  • Must be stretchable enough to meet minimum extended neck measurement
  • Must 2 – needle top stitches should be made by 2-needle machine

Needle Selection Logic:

  1. The external structure of the first election of the first needle. A. nature of the car object.
  2. Soft and hard
  3. Thick and thin
  4. Fever or heat degree
  5. Impact resistance  B. Sewing Machine want to accomplish a step performance needle hole as small as possible (breakage rates may be higher) Measures: SPI, KN, KN + SPI, or drop the more straight stitch one. b better. (rigid needle is better)  responses enhanced needle dry, a bigger needle
  6. is the car color or adhesive under layer material not to be brought to the surface (decrease destructive) Measures: KN + SPI, HS + CL + CM design
  7. functional or decorative effect (touch, thick line) Countermeasures : S, LR, LE
  8. holes to increase the rate of low-jumper (and outlet must be high, hook line space to more) Measures: USP design
  9. After the election of the structure, with a fit of the coating, further extending the life of the needle or
  10. lower penetration resistance of titanium Long life ceramic membrane
  11. Long life, reducing heat generation
  12. Polymer film anti-adhesion, reduce heat to produce
  13. diamond films – long life, anti-adhesion, reducing heat generation

Application of Butterfly Needle:

Sharp round point : Standard for blind stitch needles. For precise stitch sequences in lockstitch operations. A sensitive point, susceptible to damage.

Application of Butterfly Needle
Sharp Round

Example: Blouses, fine skirts and trousers, curtains

Round point with slightly rounded tip: Standard for all chain stitch operations

Application of Butterfly Needle - Round Point
Round Point

Example: For fine, sensitive knitted fabrics, micro fiber, multi head embroidery

Regular round point: Most common for all kinds of lockstitch applications particularly for woven fabrics, artificial leather, coated fabrics.

Application of Butterfly Needle - Regular Point
Regular Point

Example: Shirts, trousers, various kinds of garments

Light ball point: For knitted fabrics and for wovens.

Example: T-shirts, underwear, fine sweaters

Application of Butterfly Needle
Application of Butterfly Needle 3 Point

Medium ball point: For elastic fabrics with Rubber or elastomeric contents.

Example: Sweaters, lace, under wear, Schiffli embroidery

Heavy ball point: For very coarse and open structured elastic fabrics.

Example: Sweaters, cardigans

Special ball point: For warp fabrics with high elastomeric contents.

Example: Underwear, orthopedic Clothes

Special ball point: For Schiffli embroidery applications.

Example: Curtains, tablecloth

Coating Needles:

  • Reduce Adhesion Trouble
  • Ceramic Coating Needle (CM)
  • Diamond Like Film Coating Needle (DLC)
  • Heat Proof Coating Needle (HP)
  • PVD Coating Needle
  • KN+SPI Needle
Coating titanium needles
Coating needles

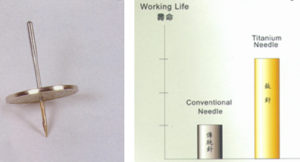

Features Titanium Needles:

  • HV 2000 ultra-high hardness
  • Beyond corrosive resistant stainless steel
  • Durable high penetration
  • Reduce the cost of the best weapon
  • 2-3 times the life of traditional titanium needles
Features Titanium Needles
Titanium Needles



Engr. Kh. Mashiur Rahman, Garments Auto Machine Technologist, Web: www.autogarment.com, Email: autogarments@gmail.com, Cell: +88 017 92 52 53 54

About Engr. Kh. Mashiur Rahman

He is Garment Automation Technologist and Editor in Chief of Autogarment. He is certified Echotech Garment CAD Professional-China, Aptech-India, NCC-UK and B.Sc. in CIS- London Metropolitan University, M.Sc. in ICT-UITS. He is working as a Successful Digital Marketer and Search Engine Specialist in RMG sector during 2005 to till now. Contact him- apparelsoftware@gmail.com
